Philips Brilliance LED 241P3LYEB Monitor
 Philips Website
 Links of LED 241P3LYEB

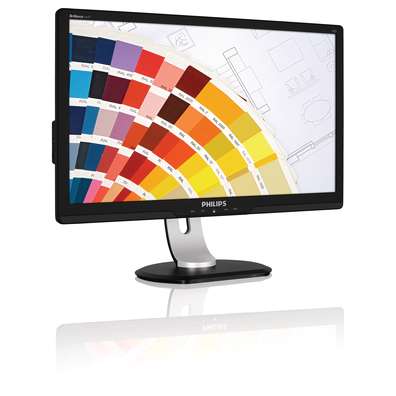

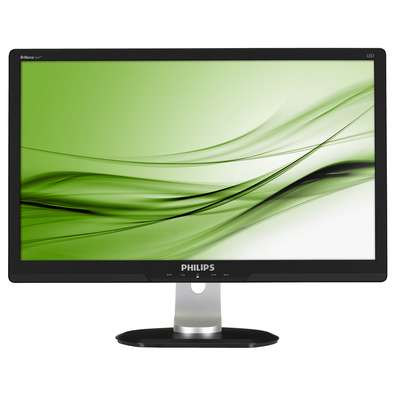

Philips Brilliance LED 241P3LYEB Monitor

(information from Philips)

image image

Product Features:

Picture/Display
LCD panel type: TFT-LCD
Backlight type: W-LED system
Panel Size: 24 inch / 61 cm
Aspect ratio: 16:9
Effective viewing area: 531.4 (H) x 298.9 (V)
Optimum resolution: 1920x 1080 @ 60Hz
Response time (typical): 5 ms
Brightness: 250 cd/m2
Contrast ratio (typical): 1000:11000:1
SmartContrast: 20,000,000:1
Pixel pitch: 0.276 x 0.276 mm
Viewing angle: 170o (H) / 160o(V), @ C/R > 10
Picture enhancement: SmartImage
Display colors: 16.7 M
Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz (V)
sRGB
Connectivity
Signal Input: VGA (Analog ), DVI-D (digital, HDCP), DisplayPort
USB: USB 2.0 x 1
Sync Input: Separate Sync, Sync on Green
Audio In/Out: Earphone out (3.5 mm jack)x 1, PC audio-in
Convenience
Built-in Speaker: 1.5Wx2
User convenience: SmartImage, Volume, Power On/Off, SmartPower, Menu
OSD Languages: English, French, German, Spanish, Italian, Russian, Simplified Chinese, Portuguese
Other convenience: VESA mount (100x100mm), Kensington lock
Plug & Play Compatibility: DDC/CI, Mac OS X, sRGB, Windows 7/Vista/XP
Stand
Height adjustment: 130 mm
Pivot: 90 degree, clockwise, auto pivot
Swivel: -65/+65 degree
Tilt: -5/20 degree
Power
ECO mode: 14 W (typ.)
On mode: 18.9 W (EnergyStar 5.0 test method)
Standby mode: 0.5 W
Off mode: 0.3 W
Power LED indicator: Operation - White, Standby mode- White (blinking)
Power supply: 100-240VAC, 50/60Hz, Built-in
Dimensions
Product with stand (mm): 570 x 507 x 220 mm
Product with stand in inch: 22.44 x 19.96 x 8.66 inch
Product without stand (mm): 570 x 353 x 62 mm
Product without stand in inch: 22.44 x 13.90 x 2.44 inch
Packaging in mm (WxHxD): 670 x 413 x 268 mm
Packaging in inch (WxHxD): 26.38 x 16.26 x 10.55 inch
Weight
Product with stand (kg): 6.7 kg
Product with stand (lb): 14.74 lb
Product without stand (kg): 4.5 kg
Product without stand (lb): 9.9 lb
Product with packaging (kg): 8.6 kg
Product with packaging (lb): 18.92 lb
Operating conditions
Temperature range (operation): 0oC to 40oC
Temperature Range (storage): -20oC to 60oC
Relative humidity: 20%-80 %
MTBF: 30,000 hour(s)
Sustainability
Environmental and energy: EnergyStar 5.0, EPEAT Gold, RoHS
Recyclable packaging material: 100 %
Compliance and standards
Regulatory Approvals: BSMI, CE Mark, FCC Class B, GOST, SEMKO, TCO 5.1, TUV Ergo, TUV/GS, UL/cUL
Cabinet
Color: Black
Finish: Texture
