Content

 Kinetics:
   Work, Energy, and Power
   Power
   Efficiency

Kinetics:

In a practical application, besides the total work done or total energy needed to do a job, sometime how fast the work is done or how fast the energy is used is a much more important concern.

Work, Energy, and Power

Work is a description of an activity that cause the displacement of an object along with the direction of force applied on. Energy is a concept of the capacity for doing work. Numerically, by the principle of work and energy, the energy processed by the object must have same value to accomplish the corresponding work. Power is defined as the time rate of doing work and therefore numerically the power of doing work has the same value as the power of the time rate of using energy to do the corresponding work.

Power

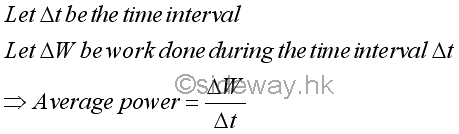

By definition, the average power of doing work is the total work done that has done during the time interval of doing the work.


By taking limit as Δt approaching zero, the instantaneous power, or the time rate of doing work at an instantaneous time interval is


Since work done is defined as the displacement of an object in the direction of force applied on,


Efficiency

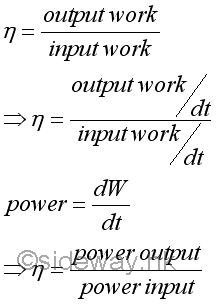

In practical mechanical problems, friction forces are always involved. Friction force is a non-conservative force depending on the path travelled. Since extra work is needed to overcome the work due to the friction force,  the work output of a mechanical device is usually less than the work input to the mechanical device. The mechanical efficiency, b of a mechanical device is defined as the ratio of the output work over the input work to measue the efficiency of a mechanical design for a device or machine. In other words, the efficiency of a mechanical machine is always less than 1.  Imply


Since the derivation of the efficiency of a mechanical device or machine is based on the work that is done at a constant rate, the efficiency of a mechanical device or machine can also be expressed in term of the rates of output work done and input work done. Imply


By the principle of conservation of energy, the efficiency of a device can also be applied to device transforming mechanical energy into other forms of energy such as electric energy, thermal energy etc.


©sideway

ID: 141200002 Last Updated: 12/9/2014 Revision: 0 Ref:

close

References

  1. I.C. Jong; B.G. rogers, 1991, Engineering Mechanics: Statics and Dynamics
  2. F.P. Beer; E.R. Johnston,Jr.; E.R. Eisenberg, 2004, Vector Mechanics for Engineers: Statics
