Animation

Animation is the key function of Manim. The fundamental properties of an animation of Manim are characterized by its run_time, rate_func, remover, lag_ratio, and suspend_mobject_updating

Animation Properties

The default properties of Manim animation are:
  mobject starting_mobject run_time rate_func name remover lag_ratio suspend_mobject_updating
Animation     1 smooth None False 0 True

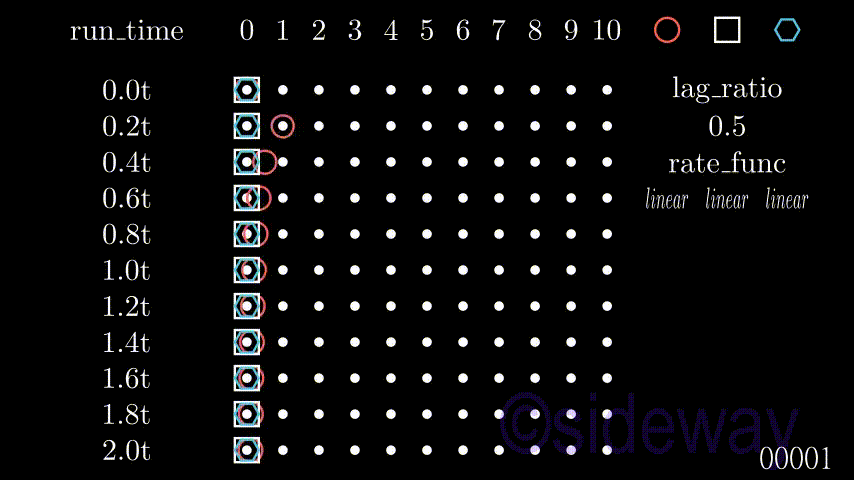

run_time

run_time is the running time for an animation or animation group.

Example

Code

# folder/file: tut/manim_animation_animation_runtime_001a.py

import numpy as np
from manimlib.scene.scene import Scene
from manimlib.mobject.mobject import Group
from manimlib.mobject.numbers import DecimalNumber
from manimlib.mobject.geometry import Dot, Circle, Square, Triangle,RegularPolygon
from manimlib.animation.creation import ShowCreation
from manimlib.animation.transform import Transform, ReplacementTransform, TransformFromCopy, MoveToTarget, ApplyMethod, ApplyFunction
from manimlib.mobject.svg.tex_mobject import TextMobject, TexMobject
from manimlib.animation.composition import AnimationGroup
from manimlib.utils.rate_functions import linear

class manim_animation_animation_runtime_001a(Scene):
   def construct(self):
      rows,cols=(12,15)
      x0=[-5,*[-3+0.6*i for i in range(cols-4)],*[4+i for i in range(3)] ]
      y0=[3.5,*[2.5-0.6*i for i in range(rows-1)]]
      txtx=["run\_time",*[str(i) for i in range(cols-4)],"","","", ]
      for i in range(cols): self.add(TextMobject(txtx[i]).move_to(([x0[i],y0[0],0])))
      txty=["", *[2*i/10 for i in range(rows)]]
      for i in range(1,rows): self.add(TextMobject(str(txty[i]),"t").move_to(([x0[0],y0[i],0])))
      [[self.add(Dot().move_to(([x0[i],y0[j],0]))) for i in range(1,12)] for j in range(1,rows)]
      d=Dot().set_width(0.0000001);a1=[d];a2=[d];a3=[d]
      self.add(Circle().scale(0.2).move_to([x0[12],y0[0],0]))
      self.add(Square().scale(0.2).move_to([x0[13],y0[0],0]))
      self.add(RegularPolygon().scale(0.2).move_to([x0[14],y0[0],0]))
      self.add(TextMobject("lag\_ratio").move_to([x0[13],y0[1],0]))
      self.add(TextMobject(r"$0.5$").move_to([x0[13],y0[2],0]))
      self.add(TextMobject("rate\_func").move_to([x0[13],y0[3],0]))
      self.add(TextMobject(r"$linear$").stretch_to_fit_width(0.7).move_to([x0[12],y0[4],0]))
      self.add(TextMobject(r"$linear$").stretch_to_fit_width(0.7).move_to([x0[13],y0[4],0]))
      self.add(TextMobject(r"$linear$").stretch_to_fit_width(0.7).move_to([x0[14],y0[4],0]))
      for j in range(1,rows):
            a1.append(Circle().scale(0.2).move_to([x0[1],y0[j],0]))
            a2.append(Square().scale(0.2).move_to([x0[1],y0[j],0]))
            a3.append(RegularPolygon().scale(0.2).move_to([x0[1],y0[j],0]))
      self.add(*a1,*a2,*a3,)
      for i in range(1,rows):
         a1[i].target=Triangle().scale(0.2).move_to([x0[11],y0[i],0])
         a2[i].target=Triangle().scale(0.2).move_to([x0[11],y0[i],0])
         a3[i].target=Triangle().scale(0.2).move_to([x0[11],y0[i],0])
      t=10
      def func():
         return \
         tuple([AnimationGroup(\
            MoveToTarget(a1[i],rate_func=linear,run_time=txty[i]*t),\
            MoveToTarget(a2[i],rate_func=linear,run_time=txty[i]*t),\
            MoveToTarget(a3[i],rate_func=linear,run_time=txty[i]*t),\
               lag_ratio=0.5)\
         for i in range(1,rows)])
      self.play(AnimationGroup(*func(),lag_ratio=0))
      self.wait(10)

Output

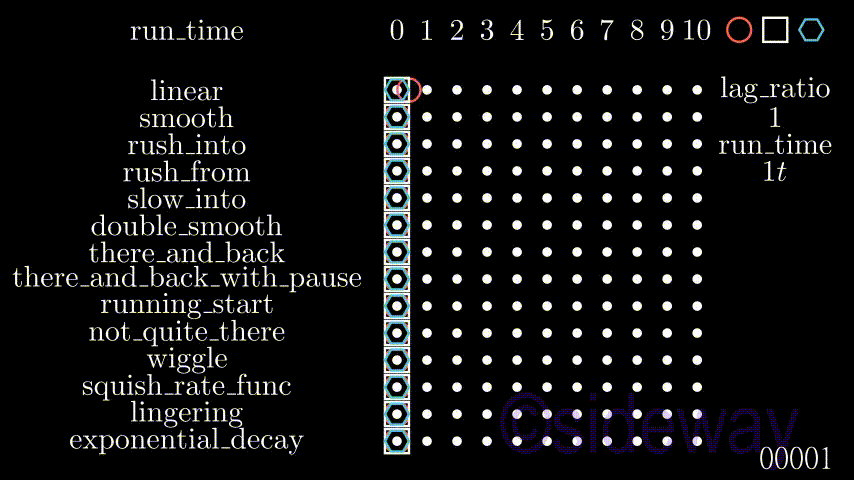

rate_func

rate_func is the interpolation motion control of an animation during the run_time.

Example

Code

# folder/file: tut/manim_animation_animation_ratefunc_001a.py

import numpy as np
from manimlib.imports import *
from manimlib.scene.scene import Scene
from manimlib.mobject.mobject import Group
from manimlib.mobject.numbers import DecimalNumber
from manimlib.mobject.geometry import Dot, Circle, Square, Triangle,RegularPolygon
from manimlib.animation.creation import ShowCreation
from manimlib.animation.transform import Transform, ReplacementTransform, TransformFromCopy, MoveToTarget, ApplyMethod, ApplyFunction
from manimlib.mobject.svg.tex_mobject import TextMobject, TexMobject
from manimlib.animation.composition import AnimationGroup
from manimlib.utils.rate_functions import *

class manim_animation_animation_ratefunc_001a(Scene):
   def construct(self):
      rows,cols=(15,15)
      x0=[-4,*[-0.5+0.5*i for i in range(cols-4)],*[5.2+0.6*i for i in range(3)] ]
      y0=[3.5,*[2.5-0.45*i for i in range(rows-1)]]
      txtx=["run\_time",*[str(i) for i in range(cols-4)],"","","", ]
      for i in range(cols): self.add(TextMobject(txtx[i]).move_to(([x0[i],y0[0],0])))
      txty=["","linear","smooth","rush\_into","rush\_from","slow\_into","double\_smooth","there\_and\_back","there\_and\_back\_with\_pause","running\_start","not\_quite\_there","wiggle","squish\_rate\_func","lingering","exponential\_decay"]#
      txty1=["",linear,smooth,rush_into,rush_from,slow_into,double_smooth,there_and_back,there_and_back_with_pause,running_start,not_quite_there(smooth),wiggle,squish_rate_func(smooth),lingering,exponential_decay]
      for i in range(1,rows): self.add(TextMobject(txty[i]).move_to(([x0[0],y0[i],0])))
      [[self.add(Dot().move_to(([x0[i],y0[j],0]))) for i in range(1,12)] for j in range(1,rows)]
      d=Dot().set_width(0.0000001);a1=[d];a2=[d];a3=[d]
      self.add(Circle().scale(0.2).move_to([x0[12],y0[0],0]))
      self.add(Square().scale(0.2).move_to([x0[13],y0[0],0]))
      self.add(RegularPolygon().scale(0.2).move_to([x0[14],y0[0],0]))
      self.add(TextMobject("lag\_ratio").move_to([x0[13],y0[1],0]))
      self.add(TextMobject(r"$1$").move_to([x0[13],y0[2],0]))
      self.add(TextMobject("run\_time").move_to([x0[13],y0[3],0]))
      self.add(TextMobject(r"$1t$").move_to([x0[13],y0[4],0]))
      for i in range(1,2):
         for j in range(1,rows):
               a1.append(Circle().scale(0.2).move_to([x0[i],y0[j],0]))
               a2.append(Square().scale(0.2).move_to([x0[i],y0[j],0]))
               a3.append(RegularPolygon().scale(0.2).move_to([x0[i],y0[j],0]))
      self.add(*a1,*a2,*a3,)
      for i in range(1,rows):
         a1[i].target=Triangle().scale(0.2).move_to([x0[11],y0[i],0])
         a2[i].target=Triangle().scale(0.2).move_to([x0[11],y0[i],0])
         a3[i].target=Triangle().scale(0.2).move_to([x0[11],y0[i],0])
      tme=5
      not_quite_there
      wiggle
      squish_rate_func
      lingering
      exponential_decay
      def funcs():
         return \
         tuple([AnimationGroup(\
            MoveToTarget(a1[i],rate_func=txty1[i],run_time=tme),\
            MoveToTarget(a2[i],rate_func=txty1[i],run_time=tme),\
            MoveToTarget(a3[i],rate_func=txty1[i],run_time=tme),\
               lag_ratio=1)\
         for i in range(1,rows)])
      self.play(AnimationGroup(*funcs(),lag_ratio=1))
      self.wait(10)

Output

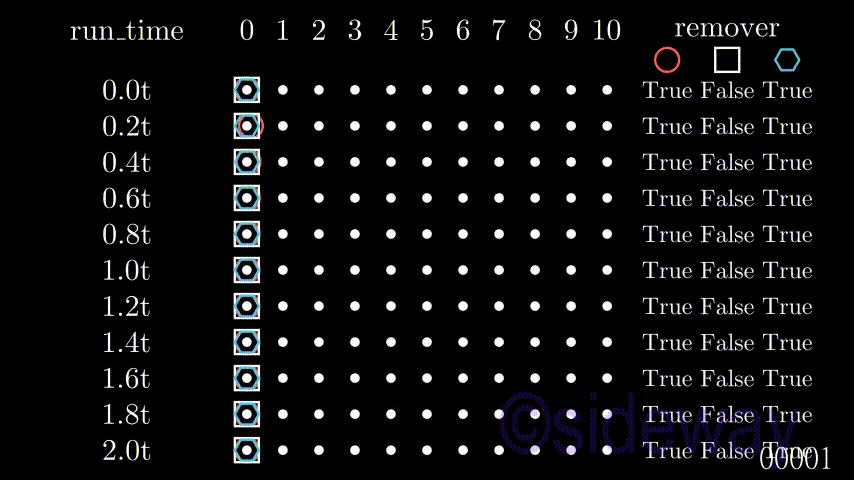

remover

remover is the flag used to specify whether the animation object will be removed from the scene.

Example

Code

# folder/file: tut/manim_animation_animation_remover_001a.py

import numpy as np
from manimlib.scene.scene import Scene
from manimlib.mobject.mobject import Group
from manimlib.mobject.numbers import DecimalNumber
from manimlib.mobject.geometry import Dot, Circle, Square, Triangle,RegularPolygon
from manimlib.animation.creation import ShowCreation
from manimlib.animation.transform import Transform, ReplacementTransform, TransformFromCopy, MoveToTarget, ApplyMethod, ApplyFunction
from manimlib.mobject.svg.tex_mobject import TextMobject, TexMobject
from manimlib.animation.composition import AnimationGroup
from manimlib.utils.rate_functions import there_and_back, there_and_back_with_pause, wiggle, smooth, not_quite_there

class manim_animation_animation_remover_001a(Scene):
   def construct(self):
      rows,cols=(12,15)
      x0=[-5,*[-3+0.6*i for i in range(cols-4)],*[4+i for i in range(3)] ]
      y0=[3.5,*[2.5-0.6*i for i in range(rows-1)]]
      txtx=["run\_time",*[str(i) for i in range(cols-4)],"","","", ]
      for i in range(cols): self.add(TextMobject(txtx[i]).move_to(([x0[i],y0[0],0])))
      txty=["", *[2*i/10 for i in range(rows)]]
      for i in range(1,rows): self.add(TextMobject(str(txty[i]),"t").move_to(([x0[0],y0[i],0])))
      [[self.add(Dot().move_to(([x0[i],y0[j],0]))) for i in range(1,12)] for j in range(1,rows)]
      d=Dot().set_width(0.0000001);a1=[d];a2=[d];a3=[d]
      self.add(TextMobject("remover").move_to([x0[13],y0[0],0]))
      self.add(Circle().scale(0.2).move_to([x0[12],y0[0]-0.5,0]))
      self.add(Square().scale(0.2).move_to([x0[13],y0[0]-0.5,0]))
      self.add(RegularPolygon().scale(0.2).move_to([x0[14],y0[0]-0.5,0]))
      remov=[
         [True for i in range(rows)],
         [False for i in range(rows)],
         [True for i in range(rows)]
      ]
      for i in range(1,rows):
         self.add(TextMobject(str(remov[0][i])).scale(0.8).move_to([x0[12],y0[i],0]))
         self.add(TextMobject(str(remov[1][i])).scale(0.8).move_to([x0[13],y0[i],0]))
         self.add(TextMobject(str(remov[2][i])).scale(0.8).move_to([x0[14],y0[i],0]))
      for j in range(1,rows):
            a1.append(Circle().scale(0.2).move_to([x0[1],y0[j],0]))
            a2.append(Square().scale(0.2).move_to([x0[1],y0[j],0]))
            a3.append(RegularPolygon().scale(0.2).move_to([x0[1],y0[j],0]))
      self.add(*a1,*a2,*a3,)
      for i in range(1,rows):
         a1[i].target=Triangle().scale(0.2).move_to([x0[11],y0[i],0])
         a2[i].target=Triangle().scale(0.2).move_to([x0[11],y0[i],0])
         a3[i].target=Triangle().scale(0.2).move_to([x0[11],y0[i],0])
      t=10
      def func():
         return \
         tuple([AnimationGroup(\
            MoveToTarget(a1[i],rate_func=smooth,run_time=txty[i]*t,remover=remov[0][1]),\
            MoveToTarget(a2[i],rate_func=not_quite_there(proportion=0.8),run_time=txty[i]*t,remover=remov[1][1]),\
            MoveToTarget(a3[i],rate_func=not_quite_there(proportion=0.4),run_time=txty[i]*t,remover=remov[2][1]),\
               lag_ratio=0.5)\
         for i in range(1,rows)])
      self.play(AnimationGroup(*func(),lag_ratio=0))
      self.wait(10)

Output

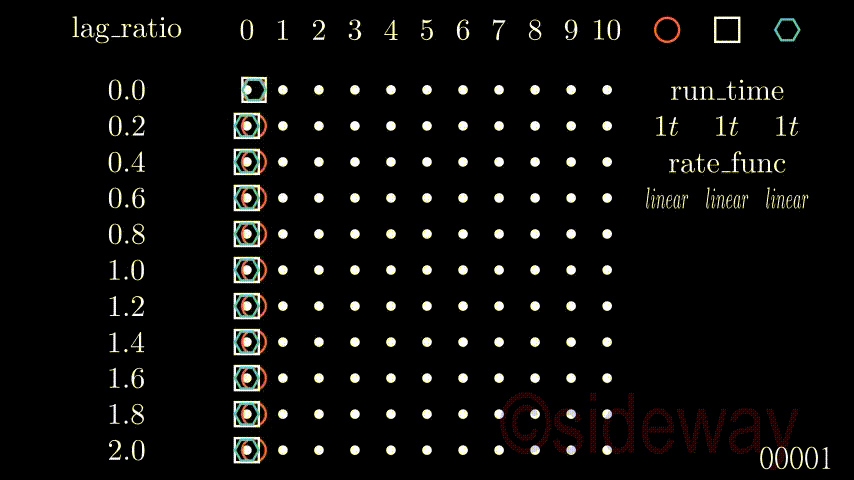

lag_ratio

lag_ratio is the lagged ratio between two animations of a animation group.

Example

Code

# folder/file: tut/manim_animation_animation_lagratio_001a.py

import numpy as np
from manimlib.scene.scene import Scene
from manimlib.mobject.mobject import Group
from manimlib.mobject.numbers import DecimalNumber
from manimlib.mobject.geometry import Dot, Circle, Square, Triangle,RegularPolygon
from manimlib.animation.creation import ShowCreation
from manimlib.animation.transform import Transform, ReplacementTransform, TransformFromCopy, MoveToTarget, ApplyMethod, ApplyFunction
from manimlib.mobject.svg.tex_mobject import TextMobject, TexMobject
from manimlib.animation.composition import AnimationGroup
from manimlib.utils.rate_functions import linear

class manim_animation_animation_lagratio_001a(Scene):
   def construct(self):
      rows,cols=(12,15)
      x0=[-5,*[-3+0.6*i for i in range(cols-4)],*[4+i for i in range(3)] ]
      y0=[3.5,*[2.5-0.6*i for i in range(rows-1)]]
      txtx=["lag\_ratio",*[str(i) for i in range(cols-4)],"","","", ]
      for i in range(cols): self.add(TextMobject(txtx[i]).move_to(([x0[i],y0[0],0])))
      txty=["", *[2*i/10 for i in range(rows)]]
      for i in range(1,rows): self.add(TextMobject(str(txty[i])).move_to(([x0[0],y0[i],0])))
      [[self.add(Dot().move_to(([x0[i],y0[j],0]))) for i in range(1,12)] for j in range(1,rows)]
      d=Dot().set_width(0.0000001);a1=[d];a2=[d];a3=[d]
      self.add(Circle().scale(0.2).move_to([x0[12],y0[0],0]))
      self.add(Square().scale(0.2).move_to([x0[13],y0[0],0]))
      self.add(RegularPolygon().scale(0.2).move_to([x0[14],y0[0],0]))
      self.add(TextMobject("run\_time").move_to([x0[13],y0[1],0]))
      self.add(TextMobject(r"$1t$").move_to([x0[12],y0[2],0]))
      self.add(TextMobject(r"$1t$").move_to([x0[13],y0[2],0]))
      self.add(TextMobject(r"$1t$").move_to([x0[14],y0[2],0]))
      self.add(TextMobject("rate\_func").move_to([x0[13],y0[3],0]))
      self.add(TextMobject(r"$linear$").stretch_to_fit_width(0.7).move_to([x0[12],y0[4],0]))
      self.add(TextMobject(r"$linear$").stretch_to_fit_width(0.7).move_to([x0[13],y0[4],0]))
      self.add(TextMobject(r"$linear$").stretch_to_fit_width(0.7).move_to([x0[14],y0[4],0]))
      for i in range(1,2):
         for j in range(1,rows):
               a1.append(Circle().scale(0.2).move_to([x0[i],y0[j],0]))
               a2.append(Square().scale(0.2).move_to([x0[i],y0[j],0]))
               a3.append(RegularPolygon().scale(0.2).move_to([x0[i],y0[j],0]))
      self.add(*a1,*a2,*a3,)
      for i in range(1,rows):
         a1[i].target=Triangle().scale(0.2).move_to([x0[11],y0[i],0])
         a2[i].target=Triangle().scale(0.2).move_to([x0[11],y0[i],0])
         a3[i].target=Triangle().scale(0.2).move_to([x0[11],y0[i],0])
      t=10
      def func():
         return \
         tuple([AnimationGroup(\
            MoveToTarget(a1[i],rate_func=linear,run_time=t),\
            MoveToTarget(a2[i],rate_func=linear,run_time=t),\
            MoveToTarget(a3[i],rate_func=linear,run_time=t),\
               lag_ratio=txty[i])\
         for i in range(1,rows)])
      self.play(AnimationGroup(*func()))
      self.wait(10)

Output


suspend_mobject_updating

suspend_mobject_updating is the flag used to specify whether the suspend_updating() function of an animation object will be resumed by resume_updating() after the animation.

Example

Code

# folder/file: tut/manim_animation_animation_updating_001a.py
from manimlib.imports import *
from manimlib.scene.scene import Scene
from manimlib.mobject.mobject import Group
from manimlib.mobject.geometry import Dot, Circle, Square
from manimlib.animation.creation import ShowCreation
from manimlib.animation.transform import Transform, ReplacementTransform, TransformFromCopy, MoveToTarget, ApplyMethod
from manimlib.mobject.svg.tex_mobject import TextMobject, TexMobject
from manimlib.animation.composition import AnimationGroup

class manim_animation_animation_updating_001a(Scene):
   def construct(self):
      rows,cols=(5,3)
      x0=[-5,-2,4,2.9]
      y0=[3,*[1.5-1.2*i for i in range(rows)]]
      txtx=["suspend\_updating()","","suspend\_mobject\_updating"]
      for i in range(cols): self.add(TextMobject(txtx[i]).move_to(([x0[i],y0[0],0])))
      txty=[("",""),("1",True),("1",False),("0",True),("0",False)]
      objs=[];t=18
      for i in range(rows):
         objs.append(Square().scale(0.5).move_to([x0[1],y0[i],0]).add_updater(lambda m, dt: m.shift(dt * RIGHT*0.005*t)))
         self.add(TextMobject(txty[i][0]).move_to(([x0[0],y0[i],0])))
         self.add(TextMobject(str(txty[i][1])).move_to(([x0[2],y0[i],0])))
      self.add(*objs)
      self.wait()
      objs[1].suspend_updating()
      objs[2].suspend_updating()
      def anims():
         return tuple([DrawBorderThenFill(objs[i],suspend_mobject_updating=txty[i][1],run_time=0.6*t) for i in range(1,rows)])
      self.play(AnimationGroup(*anims()))
      self.wait(t)
      for obj in objs: obj.clear_updaters()
      self.wait(t)

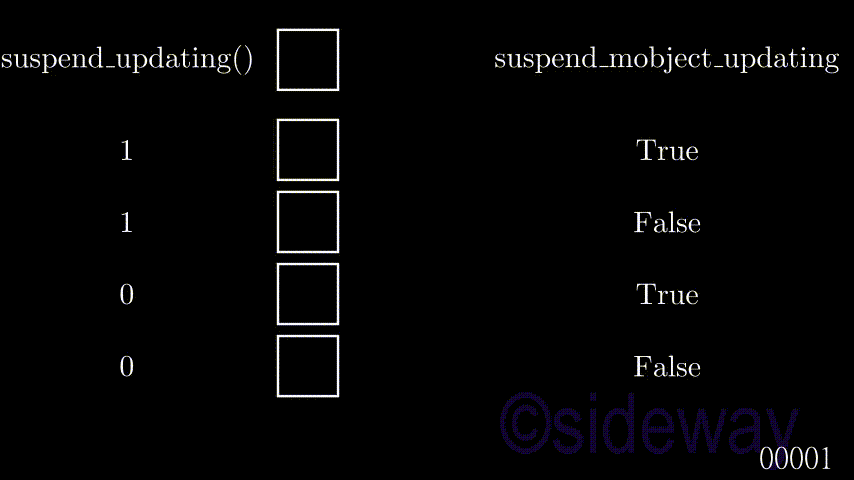

Output


©sideway

ID: 200502702 Last Updated: 5/27/2020 Revision: 0


Latest Updated LinksValid XHTML 1.0 Transitional Valid CSS!Nu Html Checker Firefox53 Chromena IExplorerna

Home 5

Business

Management

HBR 3

Information

Recreation

Hobbies 8

Culture

Chinese 1097

English 339

Reference 79

Computer

Hardware 249

Software

Application 213

Digitization 32

Latex 52

Manim 205

KB 1

Numeric 19

Programming

Web 289

Unicode 504

HTML 66

CSS 65

SVG 46

ASP.NET 270

OS 429

DeskTop 7

Python 72

Knowledge

Mathematics

Formulas 8

Algebra 84

Number Theory 206

Trigonometry 31

Geometry 34

Coordinate Geometry 2

Calculus 67

Complex Analysis 21

Engineering

Tables 8

Mechanical

Mechanics 1

Rigid Bodies

Statics 92

Dynamics 37

Fluid 5

Fluid Kinematics 5

Control

Process Control 1

Acoustics 19

FiniteElement 2

Natural Sciences

Matter 1

Electric 27

Biology 1

Geography 1


Copyright © 2000-2024 Sideway . All rights reserved Disclaimers last modified on 06 September 2019
