Fluid Measurements
 Viscometer

Fluid Measurements

Viscometer

According to the definition of viscosity or Dynamic Viscosity, it can be determined by the shear stress and the rate of shear strain. By using a rotating motion instead of linear motion to the fluid viscosity testing experiment, a continuous motion can be applied.

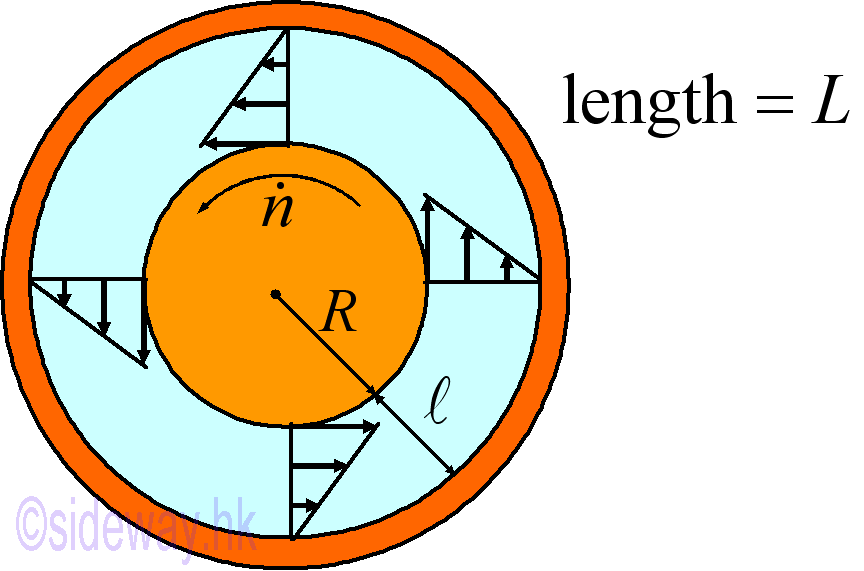

Consider two concentric cylinders with a small gap in between and the velocity distribution of the fluid is linear.

image image

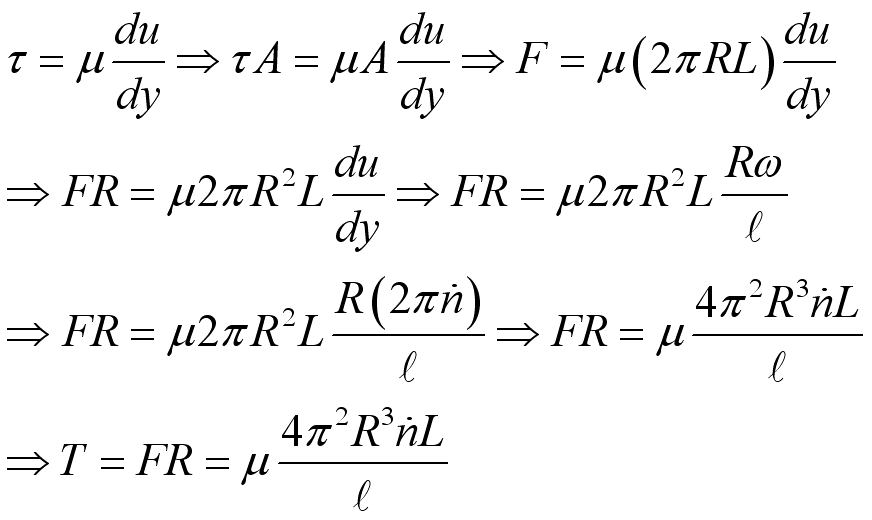

Therefore, the viscosity can be determined by measuring the torque at a specified angular velocity.
