Reactive Silencers

Silencers is an acoustic filter to reduce acoustic energy. There are two type of silencers. One is dissipative by the dissipation of acoustic energy in the materials or the internal structures of the material. Another is reactive by making use of the wave reflection due to the impedance mismatch in an expansion chamber.


Assumptions

Assumptions are made to simplify the model. The flow velocity of the gas is extremely slow that it can be neglected. No acoustic energy is transmitted through the walls of silencer. The acoustic waves are assumed to be plane wave and continuity conditions hold between mediums. There is no relfection wave at the outlet section.:

Waves in Silencer

At the intake tube:

image and image

At the chamber:

image and image

At the outlet, convert to x to 0 at L:


Law of Continuity

pressure continuity at x=0:

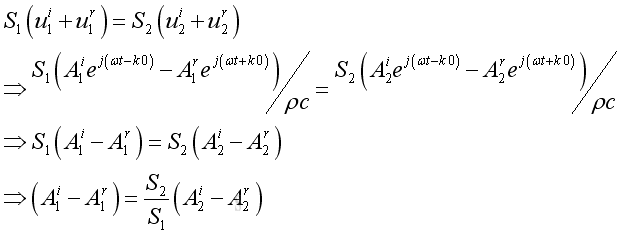

mass flow continuity at x=0:


pressure continuity at x=L:


mass flow continuity at x=L:


From the continuity conditions at x=0, imply


From the continuity conditions at x=L, imply


Equating two continuity conditions and get


Equating two continuity conditions and get


Transmission Loss

The transmission loss is:


From the transmission loss, the performance of a reactive silencer depends on the dimension of the the silencer and the operating frequency. When sinkL=0, there is no attenuation because of the resonance of the chamber. And because it is a square sin function, the attenuation varies with the operating frequencies. A larger cross sectional area ratio can increase the attenuation level without changing the resonance frequencies. Change of the length of the chamber only increase the number of resonance frequency. does not change the attenuation level..


┬ęsideway

ID: 101000019 Last Updated: 19/10/2010 Revision: 0 Ref:

close

References

  1. Michael P. Norton; Denis G. Karczub,, 2003
  2. G. Porges, 1977
  3. Douglas D. Reynolds, 1981
  4. Conrad J. Hemond, 1983
  5. F. Fahy, 2001
  6. D.A. Biew; C.H. Hansen, 1996
