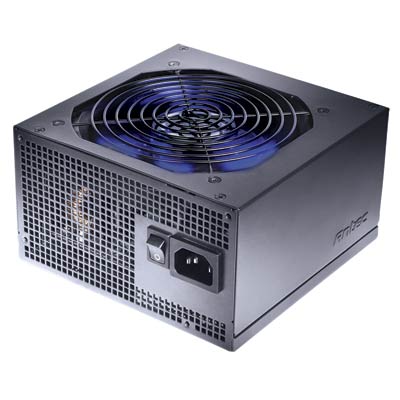

TruePower New TP-750 Blue

(information from Antec )

image image

Specifications:

INPUT
Input Voltage 100-240VAC +/-10%
Input Frequency Range 47Hz-63Hz
Efficiency Min 82% at full load
OUTPUT
Voltage +3.3V +5V +12V1 +12V2 +12V3 +12V4 +5VSB -12V
Maximum Load 25A 25A 25A 25A 25A 25A 3.0A 0.5A
Minimum Load 0A 0A 0A 0A 0A 0A 0A 0A
Load Reg +/-5% +/-5% +/-3% +/-3% +/-3% +/-3% +/-5% +/-10%
Ripple V(p-p) 50 50 120 120 120 120 50 120
OCP Set Point 40A 40A 40A 40A 40A 40A
+3.3V,+5V max load:170W
+12V1,+12V2,+12V3,+12V4 maximum load 62A (744 Watts)
The continuous maximum total output power shall not exceed 750W.
REMARKS
Connectors 1x20+4pin; 1x4pin ATX 12V; 1x8pin EPS 12V; 2x6+2 PCI-E; 2x6 Pin PCI-E; 9xSATA; 9xMolex; 1xFloppy
Features * NVIDIA SLI - ready certified
* 80PLUS Bronze Certified saves energy and lowers your electric bill
* DC to DC voltage regulator modules for greater system stability
* Highest quality Japanese brand capacitors ensure long-term reliability
* 120mm PWM fan runs up to 50% quieter than standard fans
* Blue internal LED illumination

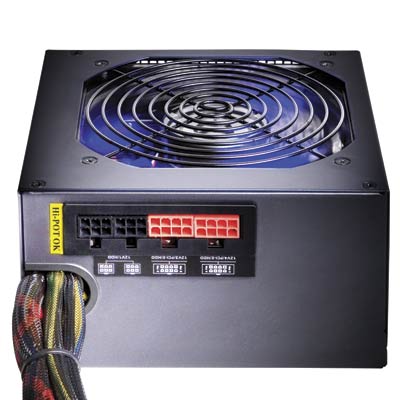

* Advanced Hybrid Cable Management improves airflow and reduces clutter
* Double layer PCB optimizes cooling efficiency and allows for heavy duty components
* Universal Input and Active Power Factor Correction
* Supports dual GPUs and dual/quad core CPUs
* 4 +12V output circuits provide stable power
* ATX12V v2.3 and EPS12V v2.91
* 2 x 6 pin and 2 x 8 (6+2) pin PCI-E graphics card connectors
* Industrial grade protection: OVP (Over Voltage Protection), UVP (Under Current Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), and OCP (Over Current Protection)
* Safety approval: UL, CUL, CE, CB, FCC Class B, TUV, CCC, C-tick, BSMI
* Meets 2010 EUP requirement: 5Vsb < 1W
* Weight: 2.3 kg; 5 lbs
* Dimensions:
 - 3.4" (H) x 5.9" (W) x 5.9" (D)
 - 86mm (H) x 150mm (W) x 150mm (D)
