Manim Rendering

Manim command can be used to control the rendering of output.

Type of Output

In general, the output of Manim can be video or pictures.

Picture Output

  • Save the last frame of output only: -s, --save_last_frame
  • Save the video as a gif picture: -i, --save_as_gif
  • Save each frame as a png picture: -g, --save_pngs

Video Output

  • Render the scene as a movie file: -w, --write_to_movie
  • Render to a movie file with an alpha channel: -t, --transparent
  • Start rendering not from the first animation: -n START_AT_ANIMATION_NUMBER, --start_at_animation_number START_AT_ANIMATION_NUMBER

Quality of Output

  • Render at a low quality: -l, --low_quality
  • Render at a medium quality: -m, --medium_quality
  • Render at a high quality: --high_quality
  • Rendering resolution: -r RESOLUTION, --resolution RESOLUTION
  • Background color of rendering output: -c COLOR, --color COLOR
  • Render to a movie file with an alpha channel: -t, --transparent

Example

Display text on scene
# folder/file: tut/text001a.py

from manimlib.imports import *

class Text001(Scene):
    def construct(self):
        text=TextMobject("Text  Test")
        self.add(text)
Since the duration of the scene is equal to zero, the scene can only be displayed in form of picture. Therefore the manim command should have the -s to limit manim to save the last frame only in order to prevent error. That is

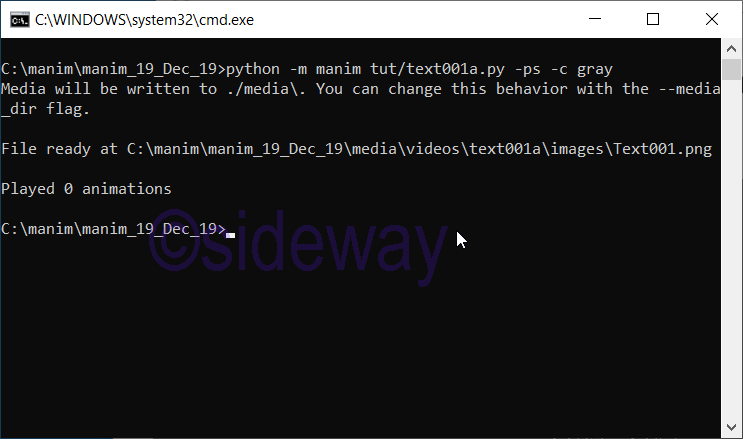

python -m manim tut/text001a.py -ps -c gray

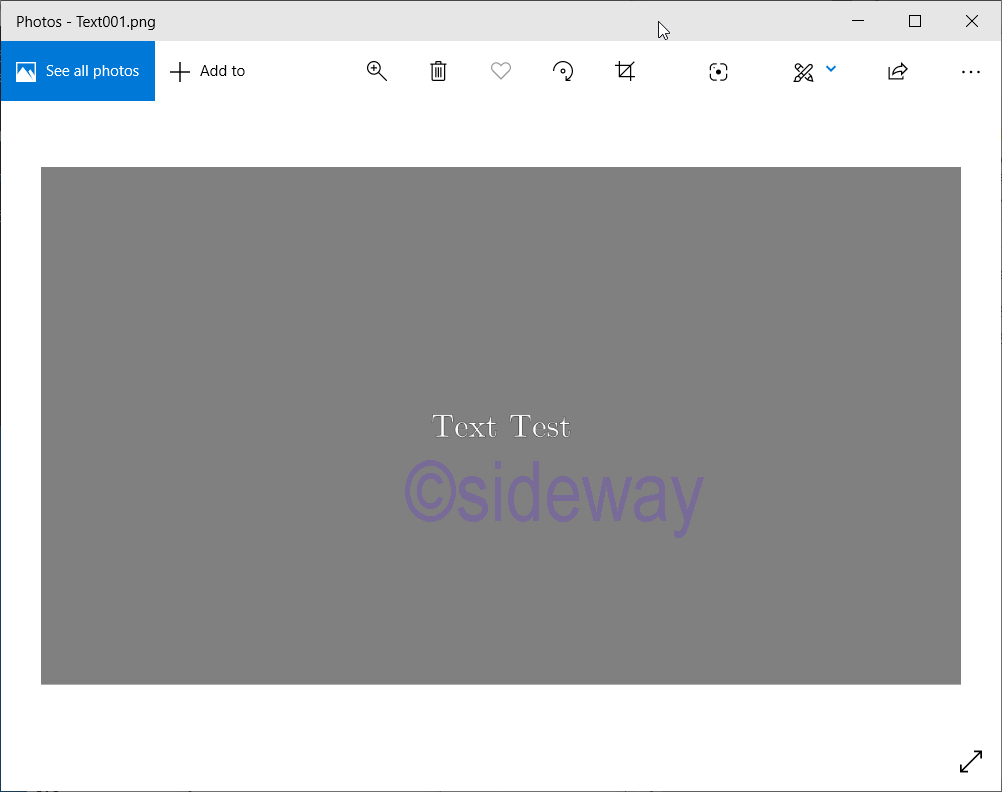

The result is


Source and Reference

https://github.com/3b1b/manim19Dec2019
