Summation of Accumulative Physical Quantity
  Areas of plane shapes

Summation of Accumulative Physical Quantity

Areas of plane shapes can be determined by integration when the area of a plane shape is expressed as an infinitesimal area element that can be summed by the application of integration.

 IMAGE...

Areas of plane shapes

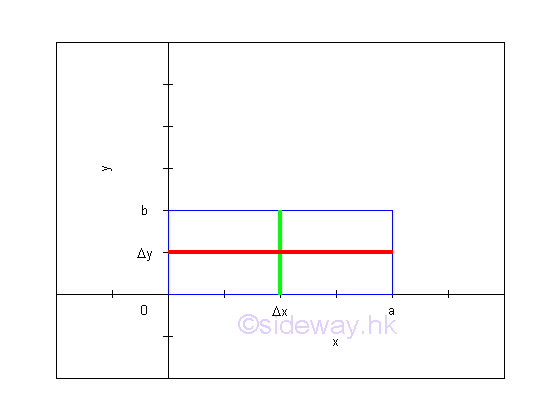

  1. Area of Rectangle

     IMAGE...

    Area by integration.

     IMAGE...

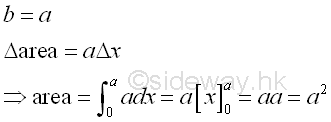

  2. Area of Square

    Area of square is a special case of rectangle. The area of square can be obtained by letting b=a

     IMAGE...

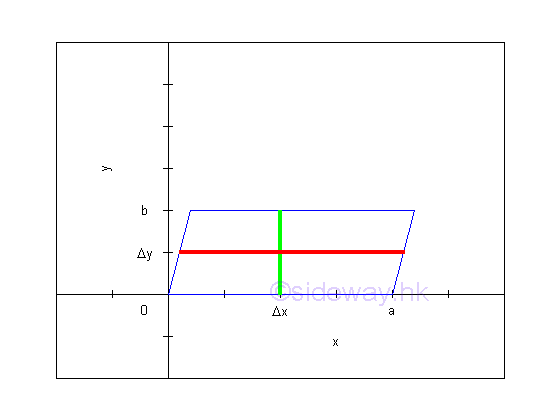

  3. Area of Parallelogram

     IMAGE...

    Area of parallelogram by horizontal summation approach

     IMAGE...

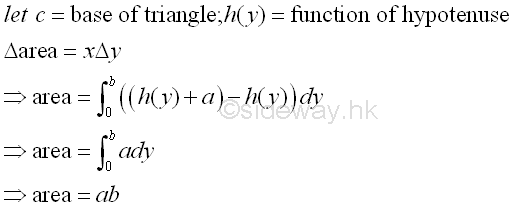

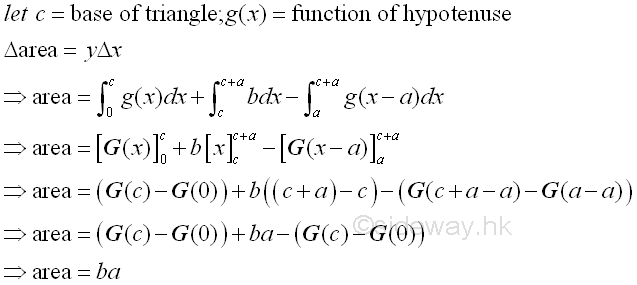

    Area of parallelogram by vertical summation approach

     IMAGE...
  4. Area of Triangle

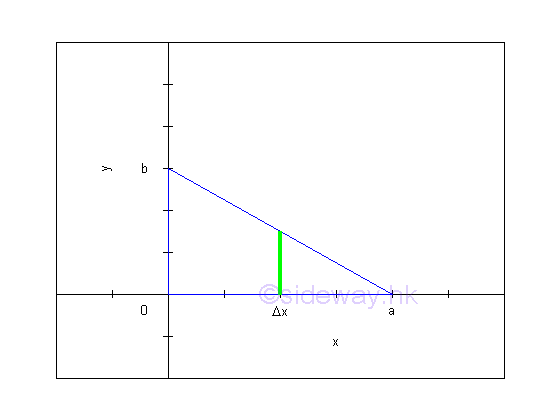

    For right angle triangle

     IMAGE...

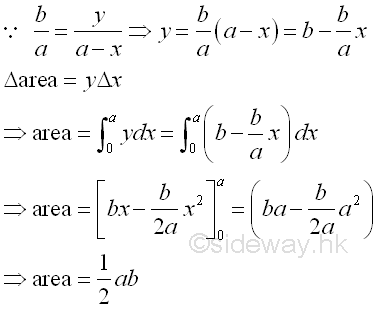

    Area of right angle triangle by horizontal summation approach

     IMAGE...

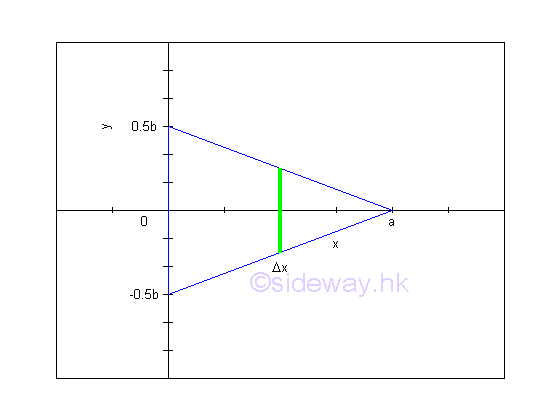

    For oblique triangle

     IMAGE...

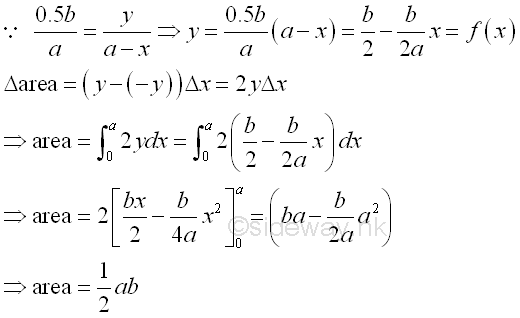

    Area of oblique triangle by area between curves

     IMAGE...

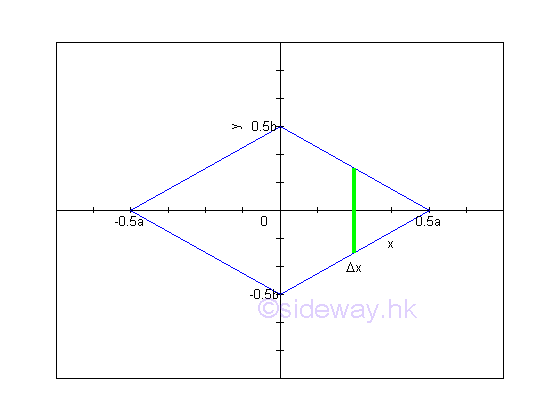

  5. Area of Rhombus

     IMAGE...

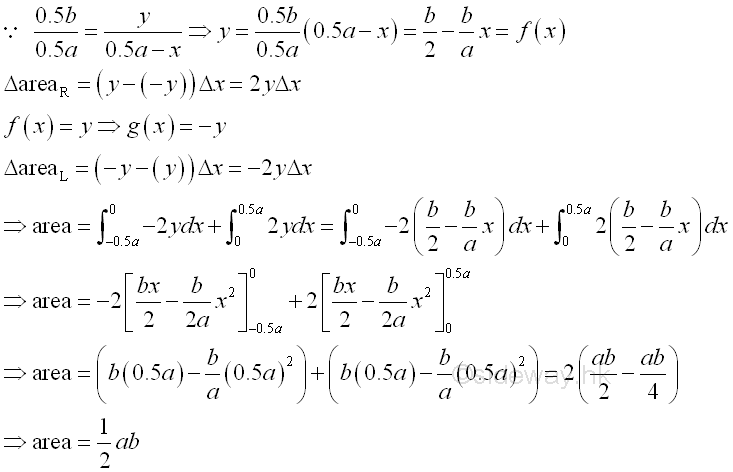

    Area of rhombus by area between curves

     IMAGE...

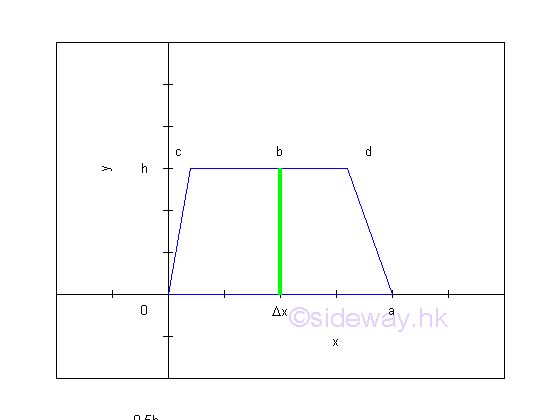

  6. Area of Trapezoid

     IMAGE...

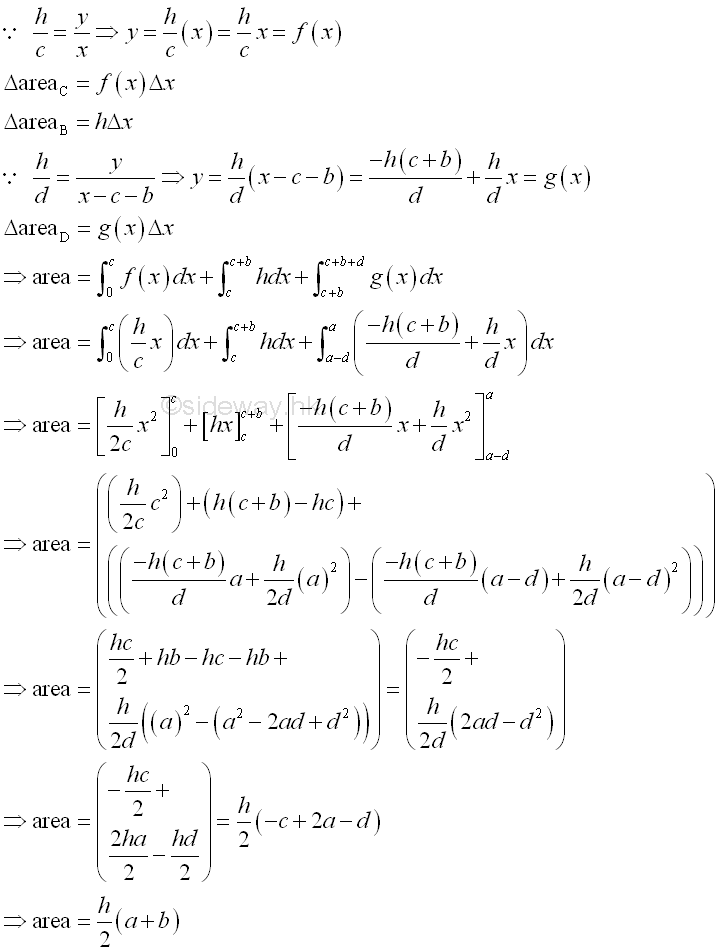

    Area of trapezoid by area between curves

     IMAGE...

©sideway

ID: 111100012 Last Updated: 11/27/2011 Revision: 0 Ref:

close

References

  1. S. James, 1999, Calculus
  2. B. Joseph, 1978, University Mathematics: A Textbook for Students of Science & Engineering
