P5E3 Deluxe/WiFi-AP@n
 ASUS Website
 Links of P5E3 Deluxe/WiFi

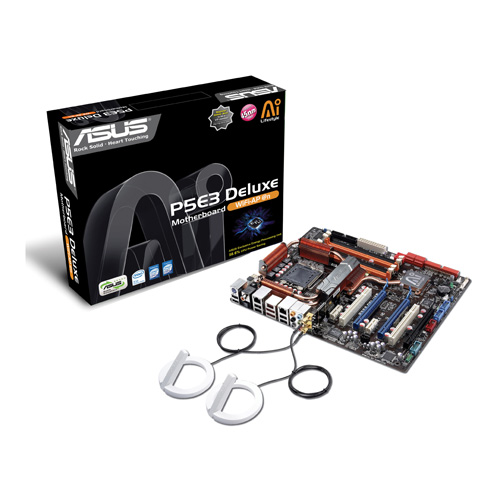

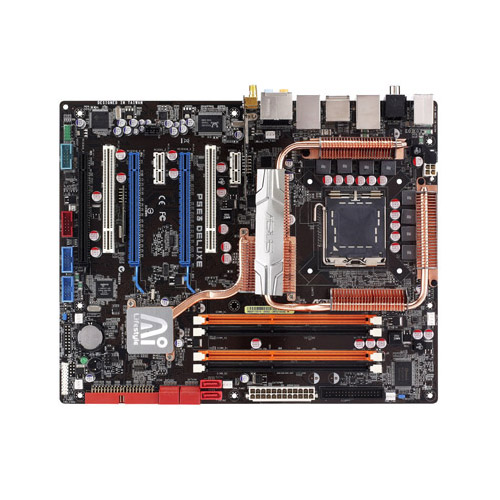

P5E3 Deluxe/WiFi-AP@n

(information from Asus )

image image

Specifications:

CPU Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm CPU
* Refer to www.asus.com for Intel CPU support list
Chipset Intel X38
Intel ICH9R
Intel Fast Memory Access Technology
Front Side Bus 1600/1333/1066/800 MHz
Memory 4 x DIMM, Max. 8 GB, DDR3 1800*/1600*/1333/1066/800 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Overclock
**Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts).
***When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots 3 x PCIe x16 (blue @PCIe2.0 x16 mode, black @PCIe x4 or x1 mode) supports CrossFire Technology
1 x PCIe x1
2 x PCI
Storage Southbridge
6 xSATA 3 Gb/s ports Support RAID 0,1,5,10
JMicron® JMB363 PATA and SATA controller
1 xUltraDMA 133/100/66 for up to 2 PATA devices
2 xExternal SATA 3.0 Gb/s port (SATA On-the-Go)
Support RAID 0,1+0,JBOD
LAN Dual Gigabit LAN controllers
Marvell88E8056® PCIe Gigabit LAN controller featuring AI NET2RealtekRTL8110SC® PCI Gigabit LAN controller featuring AI NET2
Wireless LAN ASUS WiFi-AP @n
300Mbps IEEE 802.11n and backwards compatible with IEEE 802.11g / b
- Software Access Point mode
Audio ADI® AD1988B 8 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports
ASUS Noise Filter
Support Jack-Sensing, Enumeration, Multi-streaming
AI Audio 2
IEEE 1394 Agere® L-FW3227 1394a controller supports 2 x 1394a ports (one at midboard; one at back panel)
USB 12 USB 2.0 ports (6 ports at mid-board, 6ports at back panel)
ASUS Unique Features ASUS Power Saving Solution
- ASUS EPU (Energy Processing Unit
- ASUS 3rd Generation 8-phase Power
- ASUS AI Nap
ASUS AI Lifestyle
- ASUS Express Gate
- ASUS WiFi-AP @n
- ASUS AI Direct Link
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Pure Copper Heat-pipe solution
- ASUS Fanless Design: Stack Cool 2
- ASUS Q-Fan 2
- ASUS Optional Fan for Water-cooling or Passive-Cooling only
ASUS Crystal Sound
- ASUS Noise Filter
ASUS EZ DIY
- ASUS Q-Connector
- ASUS Q-Shield
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS AI Slot Detector
Special Features Multi-language BIOS
ASUS MyLogo 3
Overclocking Features Intelligent overclocking tools
- ASUS AI Booster Utility
Precision Tweaker 2
- vDIMM: 64 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 0.00625V increment
- vChipset (N.B.): 33-step voltage control
- vFSB Termination: 15-step reference voltage control
- vCPU PLL: 64-step CPU PLL voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- Memory tuning from 800MHz up to 3200MHz
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports 1 x PS/2 Keyboard
2 x External SATA
1 x S/PDIF Out
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
2 x WiFi-AP @n antenna jack
Internal I/O Connectors 2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x COM connector
1 x S/PDIF Out connector
2 x4-pin ATX 12V Power connector
24-pin Power connector
Front panel audio connector
CD/AUX audio in
System Panel
BIOS 16 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3
ACPI 2.0a
Multi-language BIOS
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME, PXE
Accessories User's manual
x UltraDMA 133/100/66 cable
x Floppy disk drive cable
x SATA cable
SATA power cable
3 in 1 Q-connector
ASUS Q-Shield
ASUS WiFi-AP @n manual
1 x 2-port USB2.0 / 1-port IEEE1394 module
2 x Optional Fan for Water-Cooling or Passive-Cooling only
ASUS WiFi-AP @n omni-directional antenna
Support Disc Drivers
ASUS PC Probe II
ASUS AI Suite
Anti-virus software (OEM version)
ASUS Update
ASUS WiFi-AP @n Wizard
Image-Editing Suite
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x24.4 cm )

CPU support list

CPU Since PCB Since BIOS Note
Celeron 420(1.60GHz,800 FSB,L2 512KB,LGA775,revA1) ALL 0301
Celeron 430(1.80GHz,800 FSB,L2 512KB,LGA775,revA1) ALL 0301
Celeron 440(2.00GHz,800 FSB,L2 512KB,LGA775,revA1) ALL 0301
Celeron 450(2.2GHz,800 FSB,L2 512KB,LGA775,revA1) ALL 1401
Celeron Dual Core E1200(revM0,1.6GHz,800 FSB,L2:512K) ALL 0804
Celeron Dual Core E1400(revM0,2.0GHz, 800 FSB, L2: 512K) ALL 0804
Celeron Dual Core E1500(revM0,2.2GHz,800 FSB,L2: 512K) ALL 0804
Celeron Dual Core E3200(revR0,2.4GHz,800 FSB,L2: 1M) ALL 1412 beta
Celeron Dual Core E3300(revR0,2.5GHz,800 FSB,L2: 1M) ALL 1412 beta
Celeron Dual Core E3400(revR0,2.6GHz,800 FSB,L2: 1M) ALL 1502
Celeron Dual Core E3500(revR0,2.7GHz,800 FSB,L2: 1M) ALL 1502
Core 2 Duo E4300 (1.8GHz,800FSB,L2:2MB,65W,rev.L2) ALL 0301
Core 2 Duo E4400 (2.0GHz,800FSB,L2:2MB,65W,rev.L2) ALL 0301
Core 2 Duo E4400 (2.0GHz,800FSB,L2:2MB,65W,rev.M0) ALL 0301
Core 2 Duo E4500 (2.2GHz,800FSB,L2:2MB,65W,rev.M0) ALL 0301
Core 2 Duo E4700 (2.6GHz,800FSB,L2:2MB,revG0) ALL 0804
Core 2 Duo E6300 (1.86GHz,1066FSB,L2:2MB,rev.B2) ALL 0301
Core 2 Duo E6300 (1.86GHz,1066FSB,L2:2MB,rev.L2) ALL 0301
Core 2 Duo E6320 (1.86GHz,1066FSB,B2:4MB,rev.B2) ALL 0301
Core 2 Duo E6400 (2.13GHz,1066FSB,L2:2MB,rev.L2) ALL 0301
Core 2 Duo E6550 (2.33GHz,1333FSB,L2:4MB,rev.G0) ALL 0301
Core 2 Duo E6700 (2.66GHz,1066FSB,L2:4MB,rev.B2) ALL 0301
Core 2 Duo E6750 (2.66GHz,1333FSB,L2:4MB,rev.G0) ALL 0301
Core 2 Duo E6850 (3.00GHz,1333FSB,L2:4MB,rev.G0) ALL 0301
Core 2 Duo E7200(2.53GHz,1066FSB,L2:3MB,rev.M0) ALL 1203
Core 2 Duo E7300(2.66GHz,1066FSB,L2:3MB,rev.M0) ALL 1203
Core 2 Duo E7400(2.80GHz,1066FSB,L2:3MB,rev.R0) ALL 1405 beta
Core 2 Duo E7500(2.93GHz,1066FSB,L2:3MB,rev.R0) ALL 1405
Core 2 Duo E7600(3.06GHz,1066FSB,L2:3MB,rev.R0) ALL 1412 beta
Core 2 Duo E8200 (2.66GHz,1333FSB,L2:6MB,rev.C0) ALL 0804
Core 2 Duo E8300 (2.83GHz,1333FSB,L2:6MB,rev.C0) ALL 1109
Core 2 Duo E8400 (3.00GHz,1333FSB,L2:6MB,65W,rev.E0) ALL 1303
Core 2 Duo E8400 (3.00GHz,1333FSB,L2:6MB,rev.C0) ALL 0804
Core 2 Duo E8500 (3.16GHz,1333FSB,L2:6MB,65W,rev.E0) ALL 1303
Core 2 Duo E8500 (3.16GHz,1333FSB,L2:6MB,rev.C0) ALL 0402
Core 2 Duo E8600 (3.33GHz,1333FSB,L2:6MB,65W,rev.E0) ALL 1303
Core 2 Extreme QX6700(revB3,2.66GHz,1066FSB,L2:2X4MB) ALL 0301
Core 2 Extreme QX6800(revB3,2.93GHz,1066FSB,L2:2X4MB) ALL 0301
Core 2 Extreme QX6850(revG0,3.00GHz,1333FSB,L2:2X4MB) ALL 0301
Core 2 Extreme QX9650(revC0,3.00GHz,1333FSB,L2:2X6MB) ALL 0601
Core 2 Extreme QX9770(revC1,3.2GHz,1600FSB,L2:2X6MB) ALL 1109
Core 2 Extreme X6800(2.93GHz,1066FSB,L2:4MB,revB2) ALL 0301
Core 2 Quad Q6400 (2.13GHz,1066FSB,L2:2X4MB,rev.B3,4 cores) ALL 0301
Core 2 Quad Q6600 (2.40GHz,1066FSB,L2:2X4MB,rev.G0,4 cores) ALL 0301
Core 2 Quad Q8200 (rev.M1,2.33GHz,1333FSB,L2:4MB,4 cores) ALL 1303
Core 2 Quad Q8200 (rev.R0,2.33GHz,1333FSB,L2:4MB,4 cores) ALL 1407
Core 2 Quad Q8200S (rev.R0,2.33GHz,1333FSB,L2:4MB,4 cores) ALL 1407 beta
Core 2 Quad Q8300 (rev.R0,2.50GHz,1333FSB,L2:4MB,4 cores) ALL 1405
Core 2 Quad Q8400 (rev.R0,2.66GHz,1333FSB,L2:4MB,4 cores) ALL 1412 beta
Core 2 Quad Q8400S (rev.R0,2.66GHz,1333FSB,L2:4MB,4 cores) ALL 1412 beta
Core 2 Quad Q9300 (2.5GHz,1333FSB,L2:6MB,rev.M1,4 cores) ALL 1109
Core 2 Quad Q9400 (rev.R0,2.66GHz,1333FSB,L2:6MB) ALL 1303
Core 2 Quad Q9400S (rev.R0,2.66GHz,1333FSB,L2:6MB) ALL 1407 beta
Core 2 Quad Q9450 (2.66GHz,1333FSB,L2:12MB,rev.C1) ALL 1109
Core 2 Quad Q9500 (2.83GHz,1333FSB,L2:6MB,rev.R0) ALL 1412 beta
Core 2 Quad Q9505(rev.R0,2.83GHz,1333FSB,L2:6MB) ALL 1412 beta
Core 2 Quad Q9550(2.83GHz,1333FSB,L2:12MB,rev.C1) ALL 1109
Core 2 Quad Q9550(rev.E0,2.83GHz,1333FSB,L2:12MB) ALL 1303
Core 2 Quad Q9550S(rev.E0,2.83GHz,1333FSB,L2:12MB) ALL 1407 beta
Core 2 Quad Q9650(rev.E0,3.00GHz,1333FSB,L2:12MB) ALL 1303
P4-560/560J (3.6 GHz) (800 FSB) (DO,E0) ALL 0301
P4-570J (3.8 GHz) (800 FSB) (D0,E0) ALL 0301
P4-630 (3.0E GHz, 800 FSB, L2:2MB, EM64T, HT) ALL 0301
P4-631 (65nm,3.0GHz, 800 FSB, L2:2MB, revD0) ALL 0301
P4-670 (3.8 GHz, 800 FSB, L2:2MB,N0) ALL 0301
P4-672 (3.8 GHz, 800 FSB, L2:2MB, revR0) ALL 0301
Pentium D 820 (2.8 GHz, 800 FSB, revA0) ALL 0301
Pentium D 840 (3.2 GHz, 800 FSB, revA0) ALL 0301
Pentium D 915(2.8GHz, 800 FSB, L2 4MB, revC1, without VT function) ALL 0301
Pentium D 915(2.8GHz, 800 FSB, L2 4MB, revD0,without VT function) ALL 0301
Pentium D 920(2.8GHz, 800 FSB, L2 4MB, revB1) ALL 0301
Pentium D 940(3.2GHz, 800 FSB, L2 4MB, revB1) ALL 0301
Pentium D 945(3.4GHz, 800 FSB, L2 4MB, revC1, without VT function) ALL 0301
Pentium D 960(3.6GHz, 800 FSB, L2 4MB, revD0) ALL 0301
Pentium Dual Core E2140(1.6GHz,800FSB,L2 1MB,M0) ALL 0301
Pentium Dual Core E2160(1.8GHz, 800FSB, L2 1MB,L2) ALL 0301
Pentium Dual Core E2180(2.0GHz,800FSB,L2 1MB,M0) ALL 0804
Pentium Dual Core E2200(2.2GHz,800FSB,L2 1MB,M0) ALL 0804
Pentium Dual Core E2210(2.2GHz,800FSB,L2 1MB,R0) ALL 1412 beta
Pentium Dual Core E2220(2.4GHz,800FSB,L2 1MB,M0) ALL 0804
Pentium Dual Core E5000 (3.4GHz,800FSB,L2:2MB,rev.R0) ALL 1412 beta
Pentium Dual Core E5200 (2.50GHz,800FSB,L2:2MB,rev.M0) ALL 1401
Pentium Dual Core E5300 (2.60GHz,800FSB,L2:2MB,rev.R0) ALL 1405
Pentium Dual Core E5400 (2.70GHz,800FSB,L2:2MB,rev.R0) ALL 1405
Pentium Dual Core E5500 (2.8GHz,800FSB,L2:2MB,rev.R0) ALL 1412 beta
Pentium Dual Core E5700 (3.0GHz,800FSB,L2:2MB,rev.R0) ALL 1502
Pentium Dual Core E6300 (2.8GHz,1066FSB,L2:2MB,rev.R0) ALL 1412 beta
Pentium Dual Core E6500 (2.93GHz,1066FSB,L2:2MB,rev.R0) ALL 1412 beta
Pentium Dual Core E6500K (2.93GHz,1066FSB,L2:2MB,rev.R0) ALL 1412 beta
Pentium Dual Core E6600 (3.06GHz,1066FSB,L2:2MB,rev.R0) ALL 1412 beta
Pentium Dual Core E6700 (3.2GHz,1066FSB,L2:2MB,rev.R0) ALL 1502
Pentium Dual Core E6800 (3.3GHz,1066FSB,L2:2MB,rev.R0) ALL 1502
