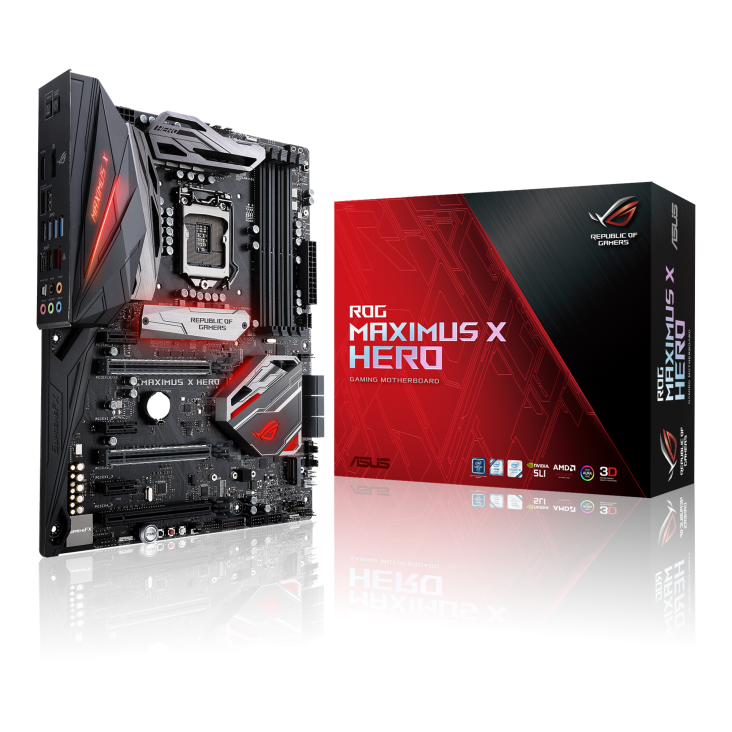

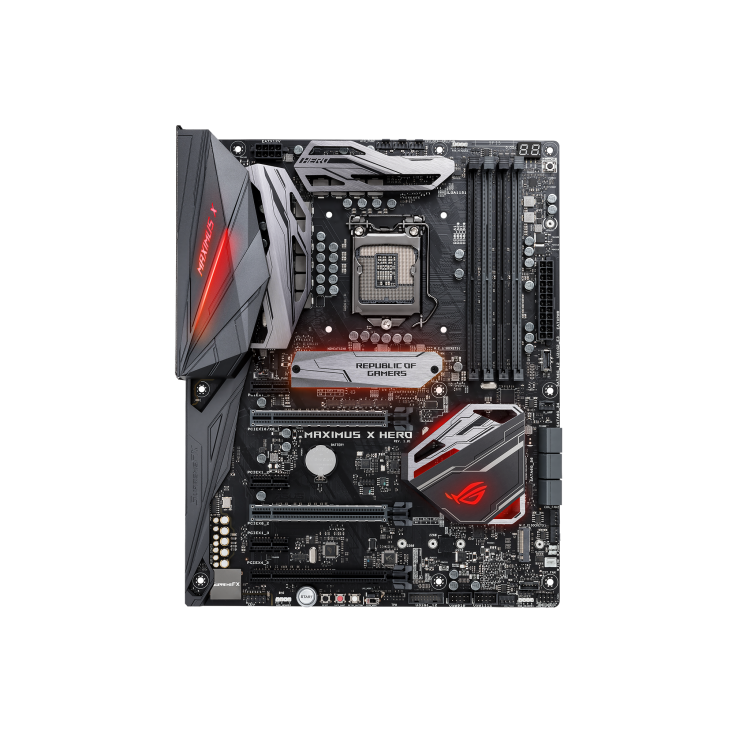

ROG MAXIMUS X HERO

(information from Asus Spec)

Specifications

ROG MAXIMUS X HERO

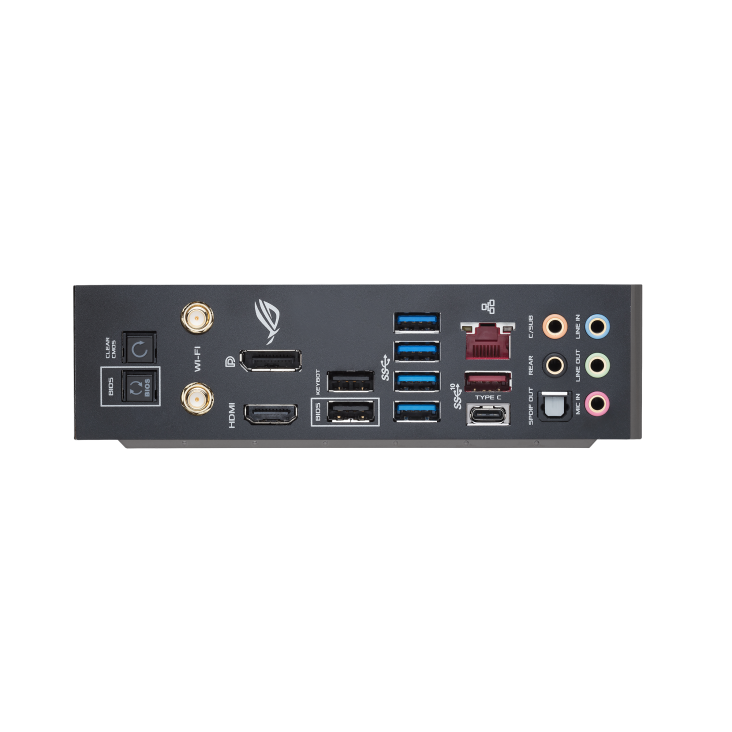

CPUIntel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list Chipset Intel® Z370 Memory4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). GraphicMulti-VGA output support : HDMI/DisplayPort 1.2 ports Integrated Graphics Processor - Supports HDMI with max. resolution 4096 x 2160 @ 24Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Multi-GPU SupportSupports NVIDIA® 2-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology Expansion SlotsIntel® Z370 Chipset 1 x PCIe 3.0 x16 (x4 mode) *1 3 x PCIe 3.0/2.0 x1 2 x PCIe 3.0 x16 (x16 or dual x8) StorageSupports Intel® Smart Response Technology*4 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*3 Intel® Z370 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready LANROG GameFirst IV Intel® I219V Anti-surge LANGuard Audio- Sonic Studio III - Supports up to 32-Bit/192kHz playback *5 ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - SupremeFX Shielding Technology - ESS® ES9023P Audio Feature : - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III USB Ports6 x USB 3.1 Gen 1 port(s) (4 at back panel, +blue, 2 at mid-board) 6 x USB 2.0 port(s) (2 at back panel, +black, 4 at mid-board) Intel® Z370 Chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM) ROG Exclusive Features- One-click Overclocking - DirectKey KeyBot II - X.M.P. - ClrCMOS - Power On MemOK! Button - NexFET™ Power Block MOSFET ROG RAMDisk ROG RAMCache II - O.C. Profile ROG CloneDrive Slow Mode GameFirst IV Mem TweakIt ROG CPU-Z Pre-mounted I/O Shield Overwolf Extreme Engine Digi+ : - MicroFine Alloy Chokes - 10K Black Metallic Capacitors ROG Extreme OC kit : - Safe Boot button - LN2 Mode UEFI BIOS features : - Tweakers´ Paradise - ROG SSD Secure Erase Extreme Tweaker USB BIOS Flashback® Special Features- Disk Unlocker CPU Installation Tool - Three-step simplicity and safety ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - AI Suite 3 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting Back I/O Ports2 x USB 3.1 Gen 2 Type-A + USB Type-CTM 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback® Button(s) 5 x Gold-plated audio jacks Internal I/O Ports3 x 3D Mount screw port(s) 1 x MemOK! button(s) 1 x Aura Addressable Strip Header(s) 1 x W_PUMP+ connector (1 x 4-pin) 1 x EXT_Fan header 1 x USB 3.1 Gen 2 front panel connector 2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 3 x Chassis Fan connector(s) (3 x 4-pin) 1 x AIO_PUMP connector (1 x 4-pin) 1 x H_AMP fan connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button Accessories1 x 3D printing mount package 1 x MOS fan bracket kit 1 x CPU installation tool 1 x SLI HB BRIDGE(2-WAY-M) User´s manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG big sticker 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s) BIOS1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information. Operating System Windows® 10 64-bit Form FactorATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Note*1 The PCIe x4_3 slot shares bandwidth with PCIex1_3. The PCIe x4_3 runs x2 mode by default. *2 When the M.2_1 socket is operating in SATA mode, SATA port 1 will be disabled. *3 When the M.2_2 socket is operating in PCIEX4 mode, SATA port 5. 6 will be disabled. *4 This function will work depending on the CPU installed. *5 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
