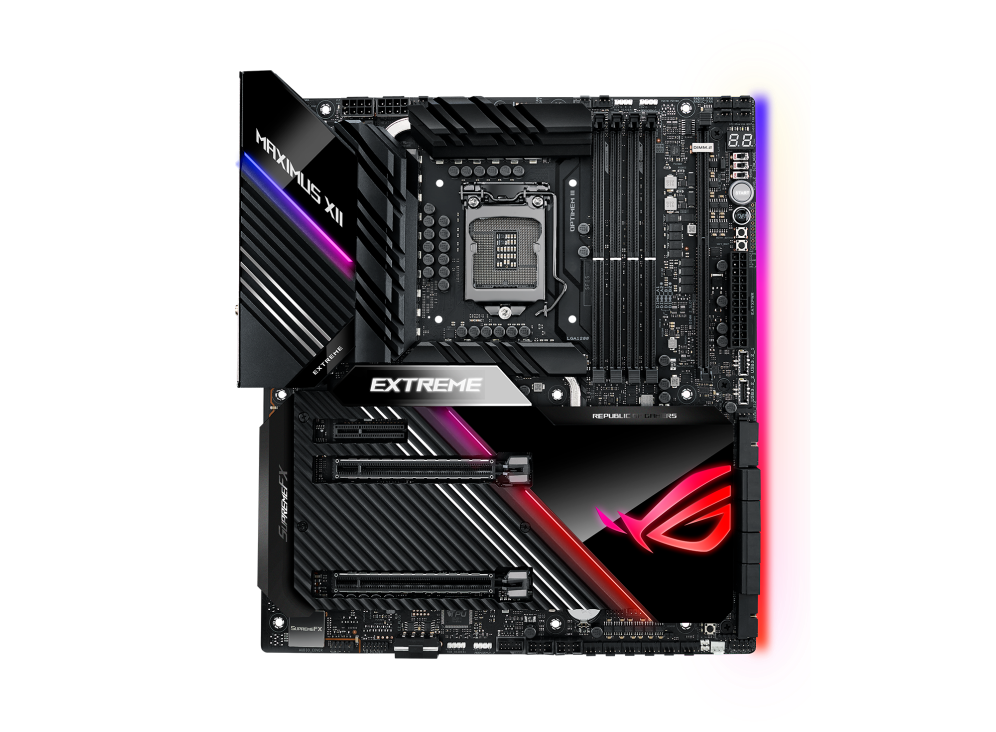

ROG MAXIMUS XII EXTREME

(information from Asus Spec)

Specifications

ROG MAXIMUS XII EXTREME

CPUIntel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Supports Intel® 14nm CPU * Refer to www.asus.com for CPU support list Chipset Intel® Z490 Memory4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * OptiMem III * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Multi-GPU SupportSupports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology Expansion SlotsIntel® 10th Gen Processors Intel® Z490 Chipset 1 x PCIe 3.0 x4 *1 2 x PCIe 3.0 x16 (x16 or dual x8) StorageTotal supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel® 10th Gen Processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2 Intel® Z490 Chipset : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*3 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready LANIntel® I225-V 2.5Gb Ethernet Marvell® AQtion AQC107 10Gb Ethernet ASUS LANGuard Wireless Data NetworkIntel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports CNVI interface Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 BluetoothBluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. AudioROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220 - ESS™ ES9023 DAC + RC4580 OP AMP - Premium Japanese audio capacitors - Audio Cover LED-illuminated audio jacks - Impedance sense for front and rear headphone outputs - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. - Supports : Multi-streaming, Front Panel Jack-retasking USB PortsRear USB Port ( Total 12 ) 1 x USB 3.2 Gen 2x2 port(s) 3 x USB 3.2 Gen 2 port(s)(2 + Type-A +1 + USB Type-CTM) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 10 ) 2 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) Software FeaturesROG Exclusive Software - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - OLED Display AI Suite 3: - 5-Way Optimization with AI Overclocking TPU EPU Digi+ Power Control Fan Xpert 4 Turbo app - EZ update AI Charger WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ASUS Special FeaturesROG Extreme OC kit - EZ PLUG - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - Infineon TDA21490 Power Stage - MicroFine Alloy Choke ASUS Q-Design - ASUS Q-Code - ASUS Q-Connector - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink cover - Steel backplate ASUS EZ DIY - BIOS Flashback™ button - Clear CMOS button - Procool II - Pre-mounted I/O shield - SafeSlot AURA Sync - ROG Aura sync backplate - Standard RGB header(s) - Addressable Gen 2 RGB header(s) LiveDash OLED 2" Back I/O Ports1 x LAN (2.5G) port(s) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 1 x USB BIOS FlashBack™ Button(s) 6 x USB 3.2 Gen 1 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x ASUS Wi-Fi Module Internal I/O Ports1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 2 x USB 3.2 Gen 2 front panel connector 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x FlexKey button 8 x ProbeIt Measurement Points 2 x W_PUMP+ connector 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x WB_SENSOR 8 x Radiator Fan Headers 1 x Thunderbolt header(s) 1 x 4-pin EZ_PLUG Power connector(s) 1 x BIOS Switch button(s) 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 2 x RSVD Switch 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Node Connector(s) 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 8 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Slow Mode switch(es) 1 x Thermal sensor connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x Speaker connector 1 x Start button Accessories1 x THUNDERBOLTEX 3-TR Card 1 x ASUS TB header cable 1 x USB2.0 Cable ROG key chain 2 x mini DisplayPort Cable 1 x ROG Multi-Bit screwdriver 1 x 2-in-1 Rubber pad 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan) 3 x M.2 Screw Package 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 3 x Thermistor cable(s) 1 x USB drive with utilities and drivers 8 x ROG weave SATA 6G cable 1 x ROG DIMM.2 with heatsink 2 x M.2 Pad for ROG DIMM.2 User´s manual 1 x ROG logo plate sticker 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Form FactorExtended ATX Form Factor 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm ) Note*1 PCIEx4 slot shares bandwidth with SATA6G_56 and PCIEx4 slot is default set at x2 mode. Please adjust BIOS settings to enable Thunderbolt card. *2 The DIMM.2 Slots are disabled by default. Please adjust BIOS settings to enable DIMM.2 Slots. *3 When M.2_1 is operating in SATA mode, SATA6G_2 will be disabled. *4 USB 3.2 Gen 2x2 works at PCIe 3.0 x2 speeds
