`Equilibrium in Two Dimensions Reactions at Supports and Connections`

# Equilibrium in Two Dimensions

Many practical engineering problem can be considered as a planar rigid body in two dimensions. The conditions for the equilibrium of a rigid body is.

and

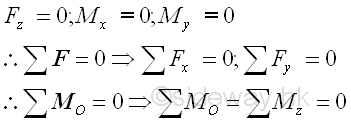

By neglecting the z axis dimension. Imply

When a rigid body is in static equilibrium state, the moment at any point A in the planar structure is equal to zero also, imply

Only two translational and one rotational motion are needed for determining a two dimensional structure is in static equilibrium state or not.

In other words, the possible forces and moments due to an applied action or a reaction in a two dimensional structure are  two rectangular forces and one moment, or one resultant force and one moment.

Since there are only three equations obtained from the equilibrium equations of a rigid body in two dimenstion, no more than three unknowns can be determined by the system of three equations.

## Reactions at Supports and Connections

In order to construct the free body diagram for analysing the equilibrium of rigid body in two dimensions, the types of reactions at supports and connections should be evaluated first. The types of reactions at supports and connections can be divided into three types:

1. Reactions equivalent to a force and a couple

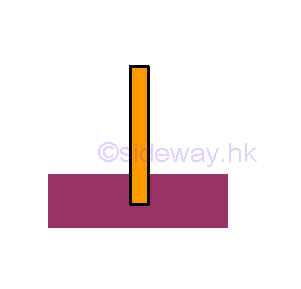

For fixed support, no translational motion and rotation motion is allowed for the free body to move and thus the free body is fully constrained.

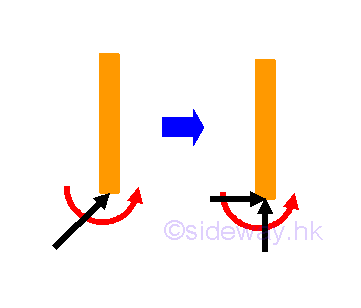

The resultant reactions are equal to one resultant force and one couple, or two rectangular force components of the resultant force and one moment of the couple.

2. Reactions equivalent to a force

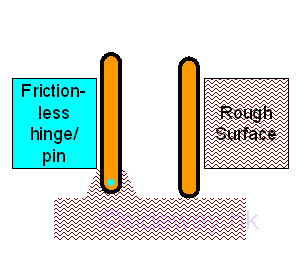

For hinged support or connection, the rotational motion is enabled by equipping with a fictionless hinge or pin, or a free or rounded end, no couple is reacted by the support or connection on the free body. But, the translational motion is stopped by either the reaction force of the hinge support or the friction force generated by the rough surface.

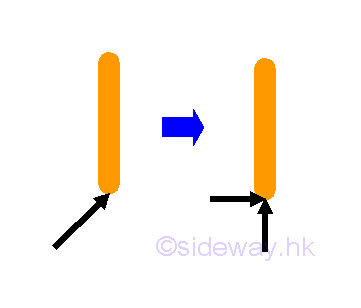

The resultant reactions is equal to one resultant force, or two rectangular force components of the resultant force.

3. Reactions equivalent to a force with known line of actionown line of action

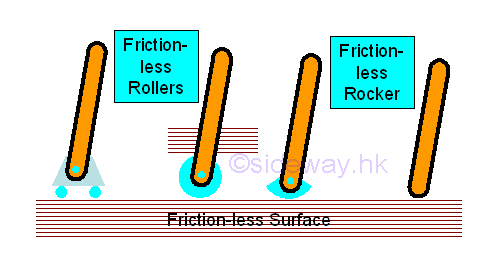

1. For roller support or connection

The rotational motion is enabled by equipping with a fictionless hinge or pin, or a free or round end, no couple is reacted by the support or connection on the free body. Besides the roller motion also allows a free translational motion in the direction along the frictionless surface. The roller motion can be a roller wheel, a guided roller, a rocker on a smooth surface, or a free or rounded end on a smooth surface. Although one component of the rectangular reaction force is equal to zero, the translational motion is still constrained by the other component of the rectangular force generated by the support or connection

The resultant reaction are equal to one reaction force which is always normal to the non-constrained free motion direction.

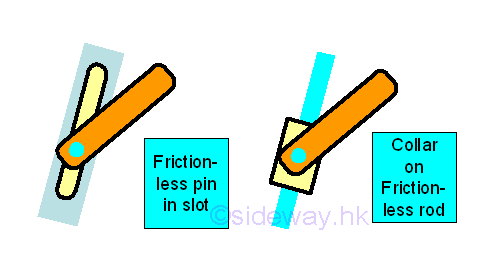

2. For free sliding guide with hinge pin support or connection

The rotational motion is enabled by equipping with a fictionless hinge or pin, no couple is reacted by the support or connection on the free body. Besides the free sliding guide also allows a free translational motion in the sliding direction. The free sliding guide can be a frictionless pin in slot, or a collar on a frictionless rod. Although one component of the rectangular reaction force is equal to zero, the translational motion is still constrained by the other component of the rectangular force generated by the support or connection

The resultant reaction are equal to one reaction force which is always normal to the non-constrained free motion direction.

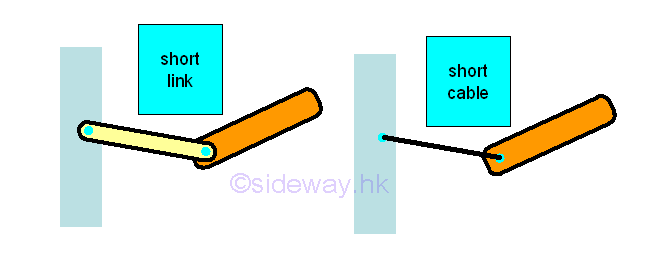

3. For free short cable or link support or connection

The resultant reaction are equal to one reaction force which is always align with the connecting axis of the cable or link. And for the cable, the reaction force is always away from the free body.

ID: 120200061 Last Updated: 16/2/2012 Revision: 0 Ref:

References

1. I.C. Jong; B.G. rogers, 1991
2. F.P. Beer; E.R. Johnston,Jr.; E.R. Eisenberg, 2004
