Centroid of 2D Plane Body
  Centroids of Areas
   Area by Integration
    Area by Double Integration

Centroid of 2D Plane Body

The centroid of an plate is determined by the first moment of a two dimensional plane body with the method of the first moment of area.


And the centroid of a wire is determined by the first moment of a two dimensional plane body with the method of the first moment of line.


Centroids of Areas

Area by Integration

Area by Double Integration

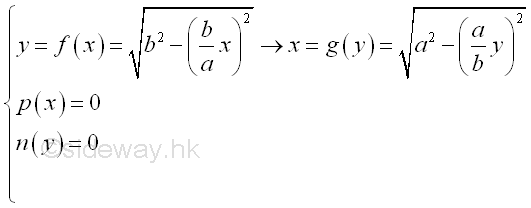

For example, the signed area of the planar region R is bounded by curves in rectangular form , Imply

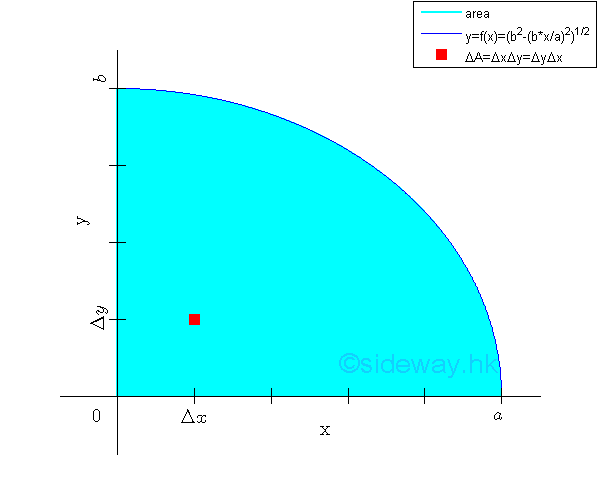

An elemental area ΔA in rectangular form can be defined as Δx times Δy. Imply


In general, the area of a region can be determined by multiple integration through sweeping the signed elemental area starting from along either rectangular coordinate axis. Imply

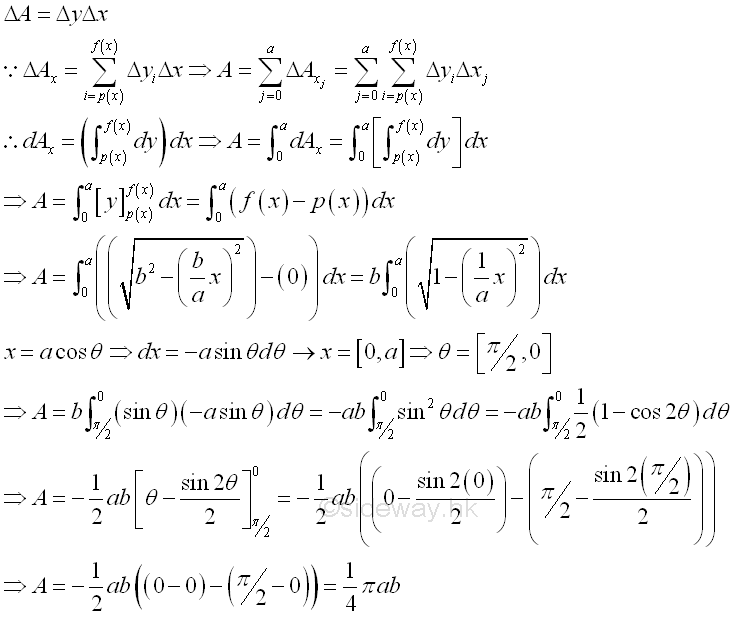

Starting from horizontal sweeping along x axis


Starting from vertical sweeping along y axis


And for curves in polar form


For example, the signed area of the planar region R is bounded by curves in polar form , For the curve profile, Imply


And the curve profile in terms of θ, imply

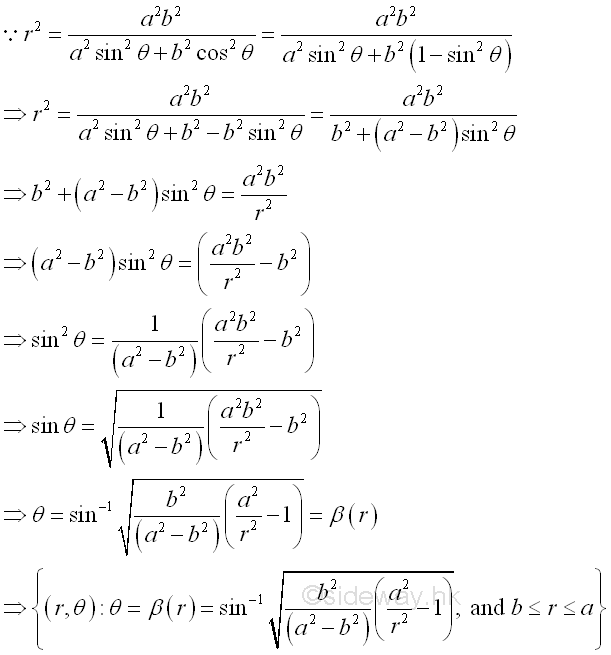

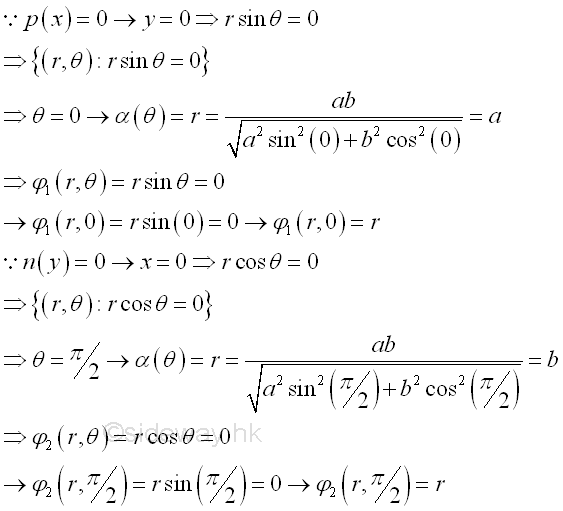

And other boundary curves are

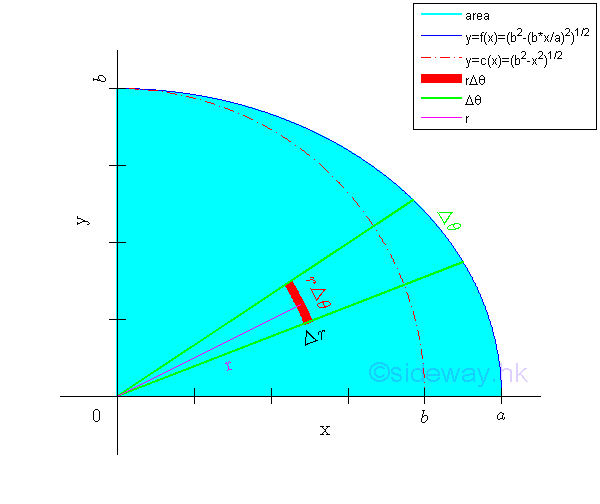

An elemental area ΔA in polar form can be approximated by Δr times rΔθ. Imply


Unlike rectangular form, the polar form of an elemental area ΔA is not a constant but a function of r and in turn a function of θ also.

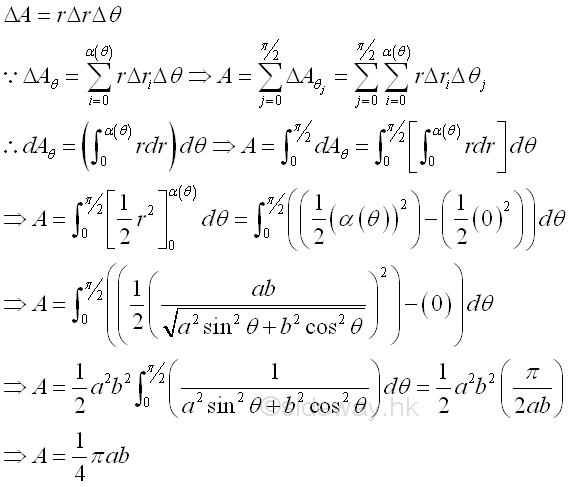

In general, the area of a region can be determined by multiple integration through sweeping the signed elemental area starting from along either polar variables. Imply

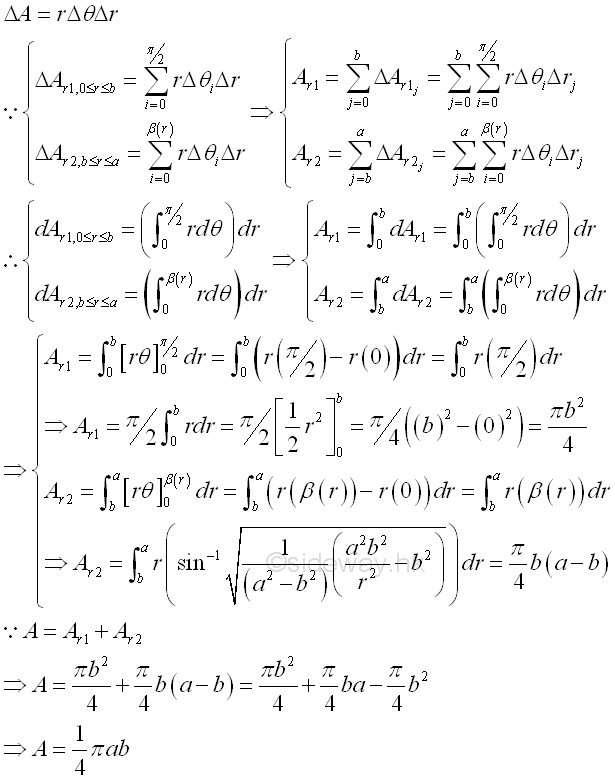

Starting from radical sweeping along variable radius r


Starting from circular sweeping along variable angle θ,
